Product Information

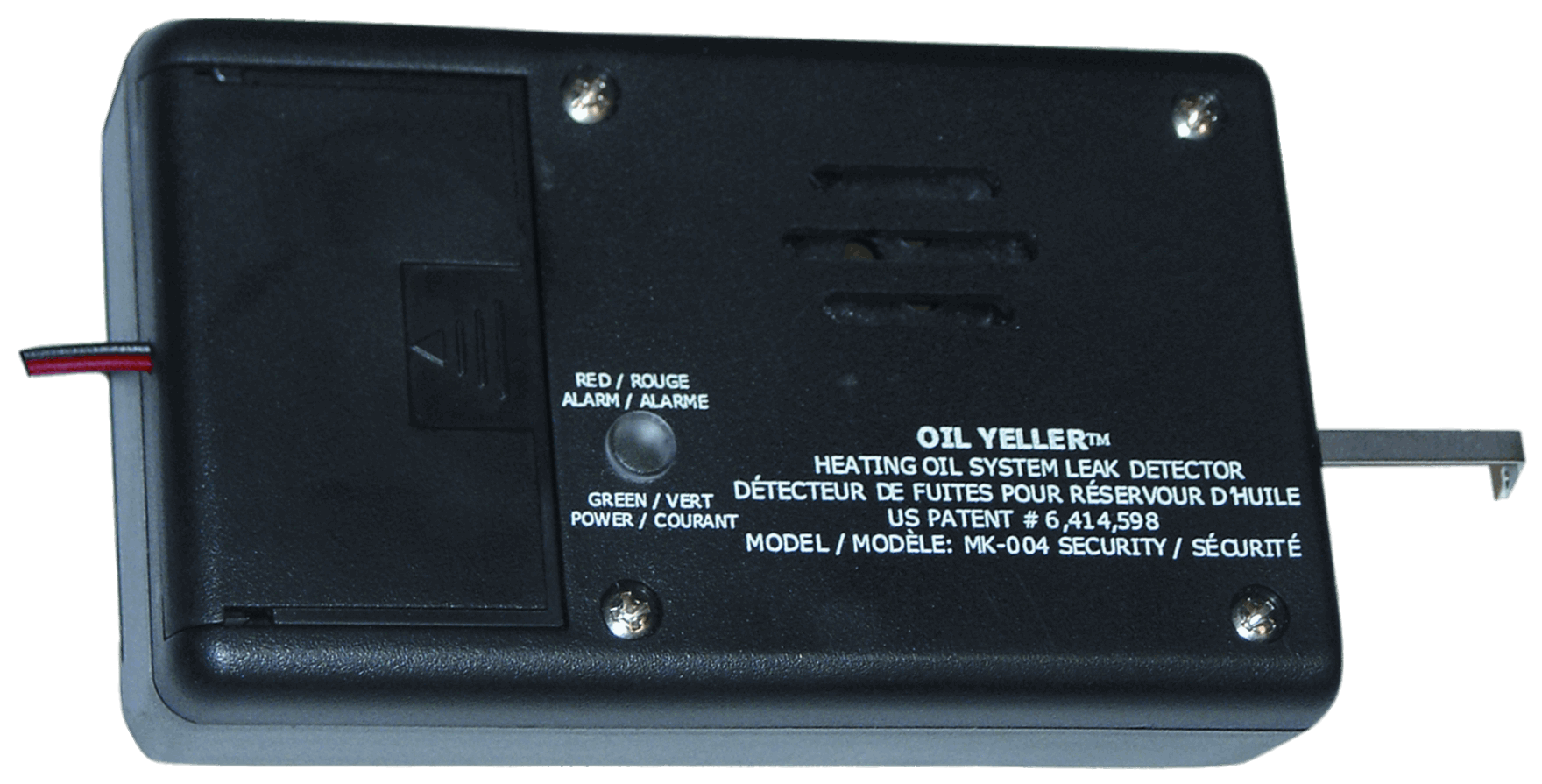

Leak Detection Alarms
Application
- Alarm can be installed on any Oil Yeller containment tray for 24/7 leak detection!

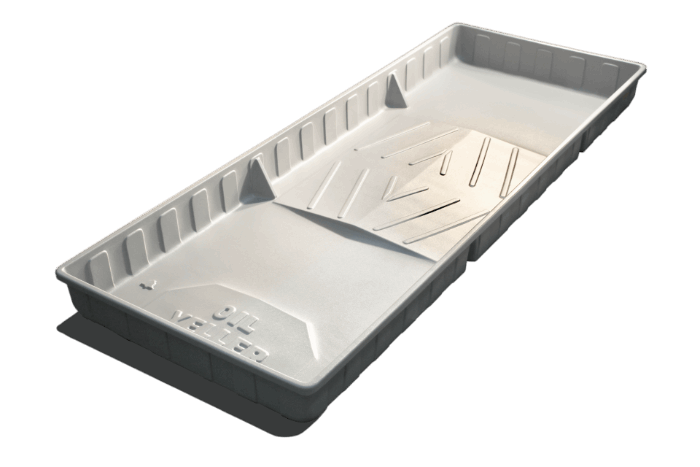

PA-001/PA-003 Wide Containment Tray
Application
- Standard 200 & 250 IMP Gallon (909 & 1136 litres) Canadian steel tank
- Standard 275 & 330 US Gallon (UL80) steel
- Standard 200-250 IMP Gallon, (909 & 1136 litres) 240-300 US Gallon ZCL Fiberglass Tanks
Specifications
- Length: 183 cm / 72″ (PA-001), 213.2 cm / 84″ (PA-003)
- Width: 68.5 cm / 27″ (PA-001), 76.1 cm / 30″ (PA-003)
- Height: 12.7 cm / 5″ (Both)
- Approximate Quantity required to trigger alarm: 7.5 L / 1.6 Imp. gal (PA-001), 10 L / 2.4 Imp. gal (PA-003)
- Containment Capacity: 150 L / 33 Imp. gal (PA-001), 195 L / 43 Imp. gal (PA-003)

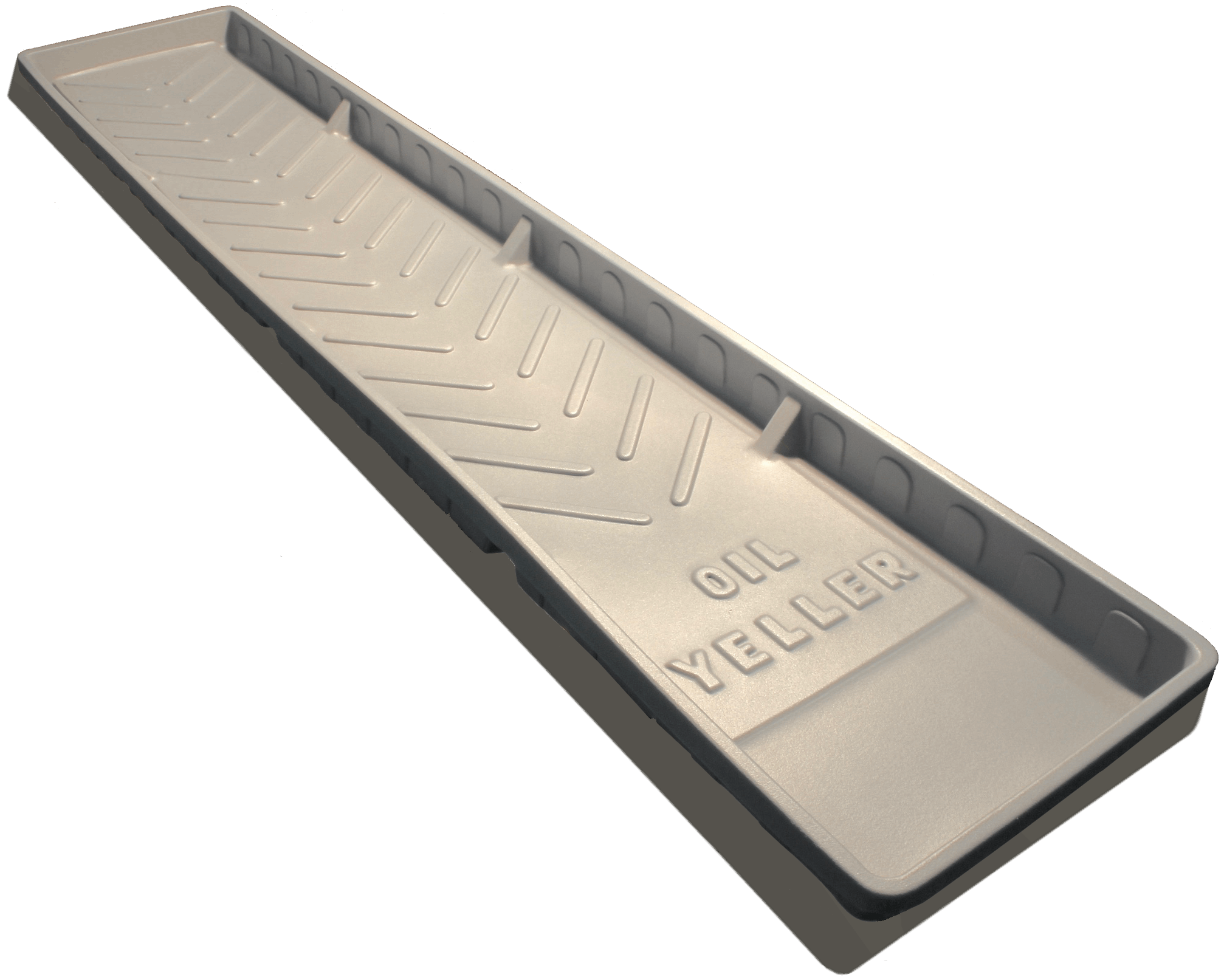

PA-002/PA-004 Narrow Containment Tray
Application
- Standard 200 & 250 Imp. Gallon (909 & 1136 liters)
- (250 Imp. Gal/1136 liter tanks require Extension Bracket EB-002)
- Canadian steel tanks = Model PA-002
- Canadian tanks with angled legs = Model PA-002 or PA-004
- American standard 275 & 330 US Gallon (UL80) steel tanks = Model PA-004
- (US 330 gallon tanks require Extension Bracket EB-004)
Specifications
- Length: 183 cm / 72″ (Both)
- Width: 36.8 cm / 14.5″ (PA-002), 43.8 cm / 17.25″ (PA-004)
- Height: 7.0 cm / 2.75″ (Both)
- Approximate Quantity required to trigger alarm: 2 L / 0.44 Imp. gal (Both)
- Containment Capacity: 30 L / 6.6 Imp. gal (PA-002), 49 L / 10.8 Imp. gal (PA-004)

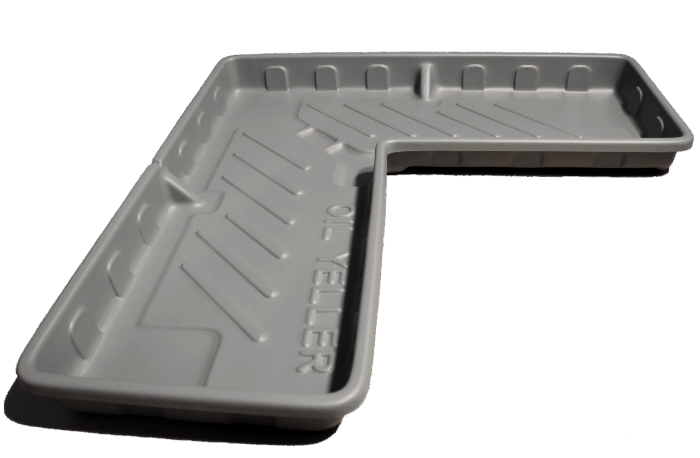

PA-005 L-Shaped Burner Tray
Application
- Place around a standard oil fired boiler or furnace. The tray slides under the burner.
Specifications
- Side Length: 78.6 cm / 31″
- Side Width: 32.8 cm / 13″
- Height: 7.0 cm / 2.75″
- Approximate Quantity required to trigger alarm: 1.5 L / 0.33 Imp. gal
- Containment Capacity: 22 L / 4.8 Imp. gal

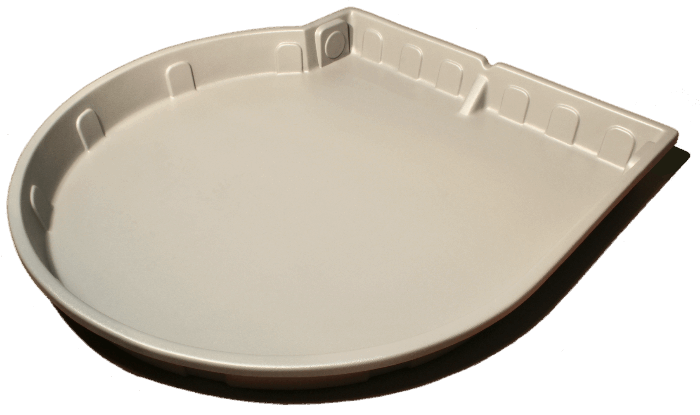

PA-006 Round Containment Tray
Application
- Place underneath domestic hot water tank
Specifications
- Length: 60.5 cm / 23 13/16″ (inside), 70.9 cm / 27 15/16″ (outside)
- Diameter: 62 cm / 24 7/16″ (inside), 70.4 cm / 27 11/16″ (outside)
- Height: 7.9 cm / 3 1/8″
- Containment Capacity: 25 L / 5.5 Imp. gal

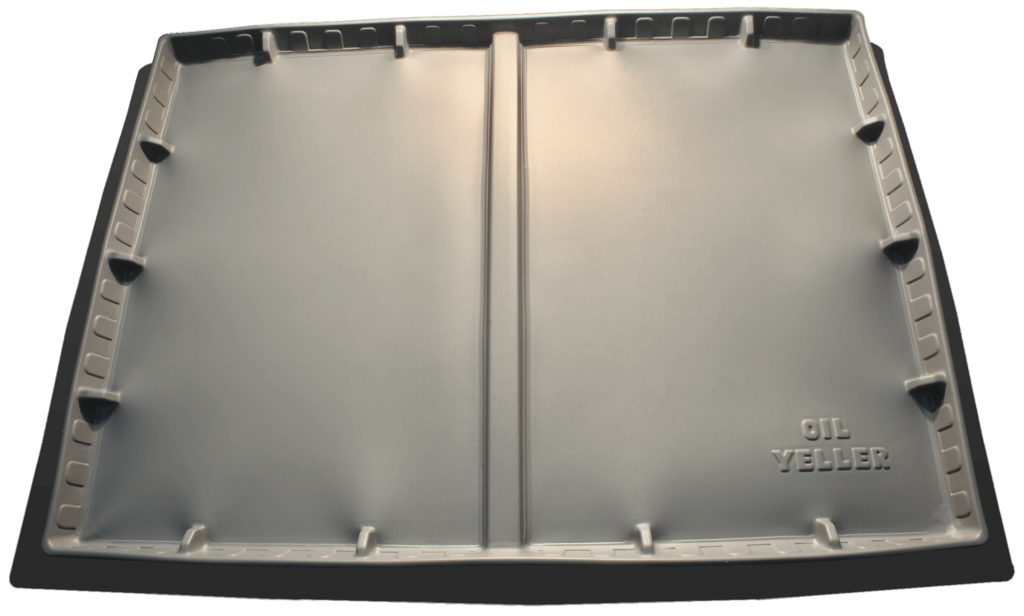

PA-007 Horizontal Tank Containment Tray
Application
- Horizontally oriented oil storage tanks
- Horizontal Granby/Vilco SWT models H150, H175 and H200
- ROTH 1500 liter double wall tank
Specifications
- Length: 111.6 cm / 43 15/16″ (inside), 126.8 cm / 49 7/8″ (outside)
- Width: 162.6 cm / 64″ (inside), 178 cm / 70 1/16″ (outside)
- Height: 8.8 cm / 3 7/16″
- Containment Capacity: 155 L / 34.1 Imp. gal

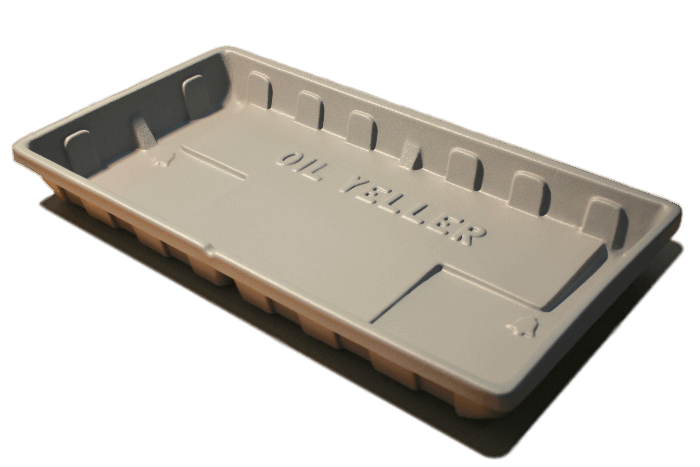

PA-008 Rectangular Filter Tray
Application
- Protection from leakage from the oil filter or burner
- When a L-Shape tray (PA-005) cannot be used because of space limitation
- When the filter is located away from the burner
Specifications
- Side Length: 61 cm / 24″
- Side Width: 32 cm / 13″
- Height: 7.0 cm / 2.75″
- Approximate quantity required to trigger alarm: 1 L / 0.22 Imp. gal
- Containment Capacity: 10.75 L / 2.4 Imp. gal
PA-009 Large Rectangular Tray
Application
- Granby 2 in 1 model 720, 1000 liters
- Vilco 125 GS W
- ROTH DWT 1000L, 1000LH
Specifications
- Length: 114 cm / 44 7/8″ (inside), 132.2 cm / 52 1/16″ (outside)
- Width: 70.5 cm / 27 3/4″ (inside), 87.5 cm / 34 7/16″ (outside)
- Height: 7.6 cm / 3″
- Containment Capacity: 72 L / 15.8 Imp. gal
PA-010 Square Containment Tray
Application
- ROTH DWT 400L
- ROTH DWT 620L
- Granby/Vilco 150 GSS
Specifications
- Length: 72.5 cm / 28 9/16″ (inside), 89.5 cm / 35 1/4″ (outside)
- Width: 72.5 cm / 28 9/16″ (inside), 89.5 cm / 35 1/4″ (outside)
- Height: 7.5 cm / 2 15/16″
- Containment Capacity: 47.9 L / 10.5 Imp. gal
